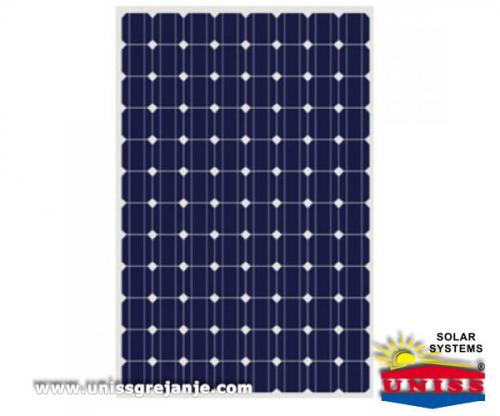

Solarni fotonaponski kolektori
Specifications |

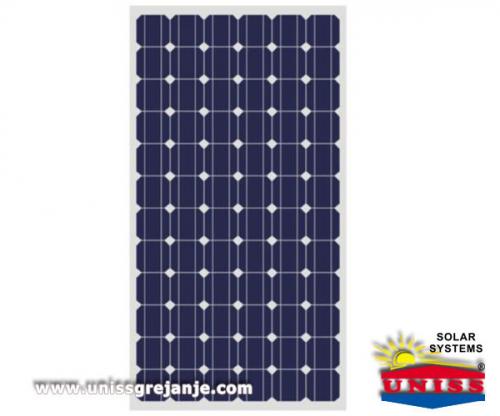

Cell | Mono crystalline silicon solar cells 125mm×125mm | Number of cells and connections | 72(6×12) | Dimension of module | 1580×808×35mm（62.2×31.8×1.4inch） | Weight | 15.5kg（34.2lbs） |
|
|
Temperature Coefficients |
Nominal Operating Cell Temperature | 44±2℃ | Short-circuit current temperature coefficient | 0.06%/℃ | Open-circuit voltage temperature coefficient | -0.396%/℃ | Peak power temperature coefficient | -0.548%/℃ |
|
Electrical Characteristics
（STC: Irradiance 1000W/m2 ,AM:1.5,Module temperature 25℃）
Model | XH | SM160 | SM165 | SM170 | SM175 | SM180 | SM185 |
Maximum Power | PMAX | 160W | 165W | 170W | 175W | 180W | 185W |
Optimum operating voltage | VMP | 35.62V | 35.80V | 36.13V | 36.24V | 36.30V | 36.30V |
Optimum operating current | IMP | 4.49A | 4.60A | 4.71A | 4.83A | 4.95A | 5.09A |
Open-circuit voltage | VOC | 43.90V | 44.12V | 44.16V | 44.25V | 44.60V | 44.60V |
Short-circuit current | ISC | 5.07A | 5.19A | 5.30A | 5.50A | 5.61A | 5.80A |
Operating temperature | -40℃to+85℃ |
Maximum system voltage | 1000V DC |
Power tolerance | ±3% |
FEATURES
High Quality
●High efficiency ,the module efficiency of 14.5%
●Mono crystalline silicon solar cell
●High transparent low-iron tempered glass
●Heavy duty anodized aluminum frame
●designed to meet the unique demands of customers
●25 year transferable power output warranty
